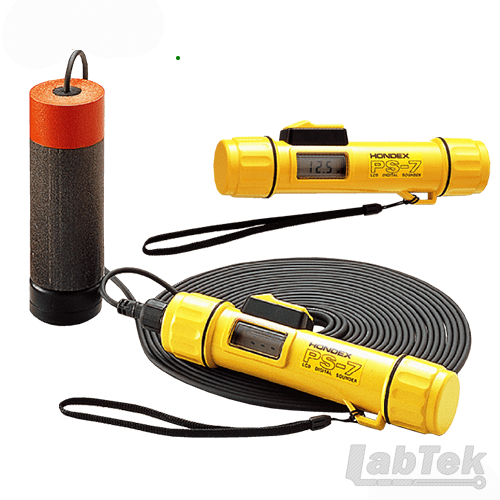

Máy đo độ sâu bằng sóng siêu âm Portable Handy Depth Sounder HONDA PS-7 PS-7FL

Máy đo độ sâu bằng sóng siêu âm Portable Handy Depth Sounder HONDA PS-7 PS-7FL

  • Durable and waterproof (50m) handy case enables easy water depth measurement (PS-7)
  • Equipped Float and 10 m cable enables measurement of remote location easily (PS-7FL)
  • Easy operation and instant measurement
  • Press the switch on the case for 2 to 3 seconds and hold the body in the direction of measurement
  • Dry battery operation (S-006P)
  • Auto-shutdown function saves the battery life. Power shuts down 10 seconds after releasing the switch.
Mã sản phẩm: 1202-20460 Danh mục:
Model No. PS-7
Number of channels 1
Frequency 200kHz
Measurement target Bottom underwater surface
Measurement range 0.6 – 80 m
Survey directive angle
(half of full angle of sound pressure)		 24°
Power source 9V DC (006P dry-cell battery)
Display LCD (with backlight)
Ambient operating temperature 0 to 50℃
Dimensions (mm) dia. 42 x 198
Weight 190 g



Usage



For simple and handy check at the construction or survey site

PS-7、PS-7FL使用例

Model No. PS-7FL
Number of channels 1
Frequency 200kHz
Measurement target Bottom underwater surface
Measurement range 0.6 – 80 m
Survey directive angle
(half of full angle of sound pressure)		 15°
Power source 9V DC (006P dry-cell battery)
Display LCD (with backlight
Ambient operating temperature 0 to 50℃
Dimensions (mm) Main unit : dia. 42 x 198
Float sensor : dia. 50 x 155
Sensor cable length 10 m
Weight Main unit : 190 g
Float sensor : 320 g
