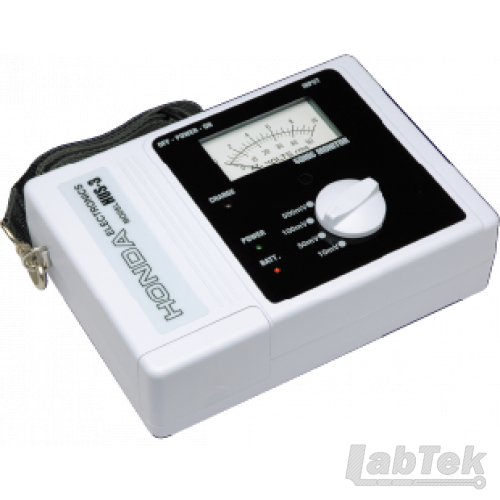

Máy đo và theo rõi cường độ sóng siêu âm Portable Sonic Monitor HONDA HUS-3

Máy đo và theo rõi cường độ sóng siêu âm Portable Sonic Monitor HONDA HUS-3

  • Rechargeable battery enables “work anywhere” (operating time: 10 hour）
  • Simply put sensor tip in the liquid to measure.(display in mV)
  • Sensor senses wide band of ultrasonic vibration from 10 kHz to 5 MHz.
Mã sản phẩm: 1202-10010 Danh mục:
  • Daily maintenance
  • Quality control
  • Testing purpose

Remarks:

  • Calibration cannot be performed for this equipment.
  • This equipment provides relative values, and not absolute values.
  • This equipment could fail if it is set up to perform continuous operation.
Model No. HUS-3
Frequency range 10kHz to 5MHz
Power input Dedicated lithium ion battery
14.8V DC, 1.5 W
Measurement range 10 / 50 / 100 / 500 mV
Meter indication values Sensor detection voltage (mV) rms
Dimensions (WxDxHmm) 179 × 132 × 55
Weight 640 g (including battery)
  • Operating temperature range : 5 to 40℃
  • AC adapter for charging : Power input 100-240VAC, 50/60 Hz
  • Options : Point sensing cover, Charging stand



Model No. HUS-5 SPS HUS-5 SPL
Shape Straight L-shape
Material (rod) Quartz glass
Length (mm) 340 260 (L shape part 80)
Weight 80 g
Incompatible liquids Heated strong alkaline
Hot phosphoric acid
Hydrofluoric acid
Model No. HUS-5 SUS HUS-5 SUL
Shape Straight L-shape
Material (rod) SUS316L
Length (mm) 340 260 (L shape part 80)
Weight 140 g
Incompatible liquid Any acids
