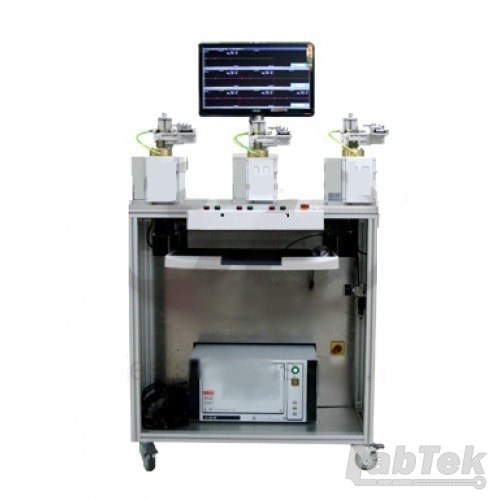

Máy kiểm tra momen xoắn bản lề tự động 2323S, 2323NS, 2323J / Auto Three Hinges Torque Tester

Máy kiểm tra momen xoắn bản lề tự động 2323S, 2323NS, 2323J / Auto Three Hinges Torque Tester

This model will make hinges swiveling in primary , and will test once torque value steady.
Successfully combined running-in & Torque testing machine. Multi-function made more efficient in related testing of a same workstation. Three axes function saves labor power & time in individually testing.

Mã sản phẩm: 1211-10120 Danh mục:

This model will make hinges swiveling in primary , and will test once torque value steady.

Successfully combined running-in & Torque testing machine. Multi-function made more efficient in related testing of a same workstation. Three axes function saves labor power & time in individually testing.

Features
●　Diagrams storage and printing. (torque-angle curve and test report)
●　Data storage of hard disk. (without limit)
●　The test conditions are programmed by computer picture. (including angle , speed , frequency and pause time…etc.)
●　The title of the test report can be revised at any time. (either in Chinese or in English)
●　Test report can be transferred to Excel file for editing.
●　Record each torque-angle curve.
●　Concurrent display torque-angle curve.
●　Test three working piece individually.
Model 2323S / 2323NS 2323J
Capacity 20kgf‧cm 15kgf‧cm
Resolution 0.01kgf‧cm( Accuracy0.3%FS) No Torque Test
Test angle Unlimited Unlimited
Min. Analysis 0.1° 0.1°
Speed range 10-180°/sen 10-360°/sen
Nuts Adjustment No/Yes /
Drive motor Servo motor Servo motor
Dimension 810 (W)×610 (D)×1600 (H)mm /
Weight 110kg /
Power AC 220V  AC 220V
