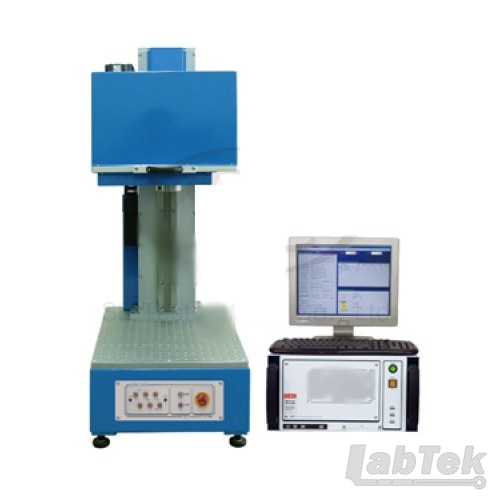

Máy kiểm tra độ bền xoắn tự động 2290s / Auto Torsion Durability Tester 2290S

Máy kiểm tra độ bền xoắn tự động 2290s / Auto Torsion Durability Tester 2290S

Specialized in screws torsion & compression /Bigger working piece torsion testing/ Automatically testing axis up-down

Mã sản phẩm: 1211-10150 Danh mục:

Specialized in screws torsion & compression /Bigger working piece torsion testing/ Automatically testing axis up-down

Suitable for all kinds of screws, mass torque and bigger working piece torsion testing.

Automatically up-down facility, working with high accuracy and long life.

With WINDOWS Chinese (English) version software, easy to operate and learn

Feature
●　Servo motor makes accurate torque testing.
●　Testing conditions are programmed through computer.
●　Correctly test each torque value (Torque-angle curve).
●　Concurrent display of the「Torque-angle curve」&「Life curve」.
●　Direct printout and storage of the「Torque-angle curve」 and test report.
●　Test report can be transferred to Excel file for editing or output through Network.
●　Stop by limited value. (Machine will stop once the figures are over the upper /lower setting value).
●　 Machine will pause or return upon reaching toque value.
●　Test Item: Positive torque, Anti-torque, Positive torque & Anti-torque.
Model

2290S
Capacity 50kgf‧cm,100kgf‧cm
Min. Torque 10kgf‧cm,0.1kgf‧cm
Min. Angle 0.1〞
Max. Angle Unlimited
Speed range 60-15000〞/min
Drive motor Servo motor
Dimension 460 (W)×600 (D)×1200 (H)mm
Weight 200kg
Power AC 110V or 220V
