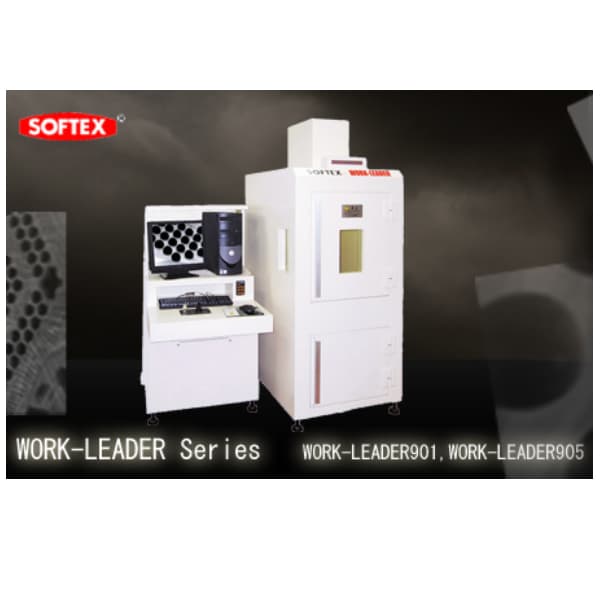

SOFTEXT WL Thiết bị kiểm tra TV bằng tia X do Softex sản xuất

SOFTEXT WL Thiết bị kiểm tra TV bằng tia X do Softex sản xuất

Features

  • Micro focus with SOFTEX installed
  • Achieve high cost performance
  • Equipped with a zoom mechanism that enables wide-angle shooting from low magnification to high magnification
  • Sharp and clear picture
  • Measurement, image processing comprehensive ZET-01 soft equipment
  • Every operation can be handled easily by everyone for personal computer control
  • II camera digital system realizes high-definition X-ray image

*We also accept test photographs of samples, so please feel free to contact us.

Mã sản phẩm: 1186-20020 Danh mục:

Main applications

Solder bonding state, resin fiber flow, void, capacitor winding state, disconnection state of IC wire, cable etc.

Bạn cần hỗ trợ về s.phẩm?

Call 024-6687-2330

BGA

Resin fiber

battery

specification

TYPE WL-90 WL-100
input AC100V,50/60Hz
Maximum voltage 90kV 100kV
Maximum current 0.1mA
Detector High resolution X-ray II camera system (1.0 Mpix digital CCD)
Table size *250×330mm
Appearance dimension W750×D1,100×H1,950mm
Equipment weight Approximately 950 kg

Bạn cần hỗ trợ về s.phẩm?

Call 024-6687-2330

* Table size 400 x 400, 400 x 600 can also be changed.

*Roll system, camera tilt, CT retrofit option, and many others.

*External dimensions and weight vary depending on specifications.
